OM 302 D

£17,500.00

Category:

Price Includes VAT & Free Delivery within the UK

The OM 302 D Package Includes:
Hersil Oxygen Regulator
Medical Oxygen Coil Tubing
UK Mains Electrical Cable
5 Luer Protection Filters
USB Ozonette Operation Manual & Video Tutorial
Medical Ozone Resistant Accessories Available

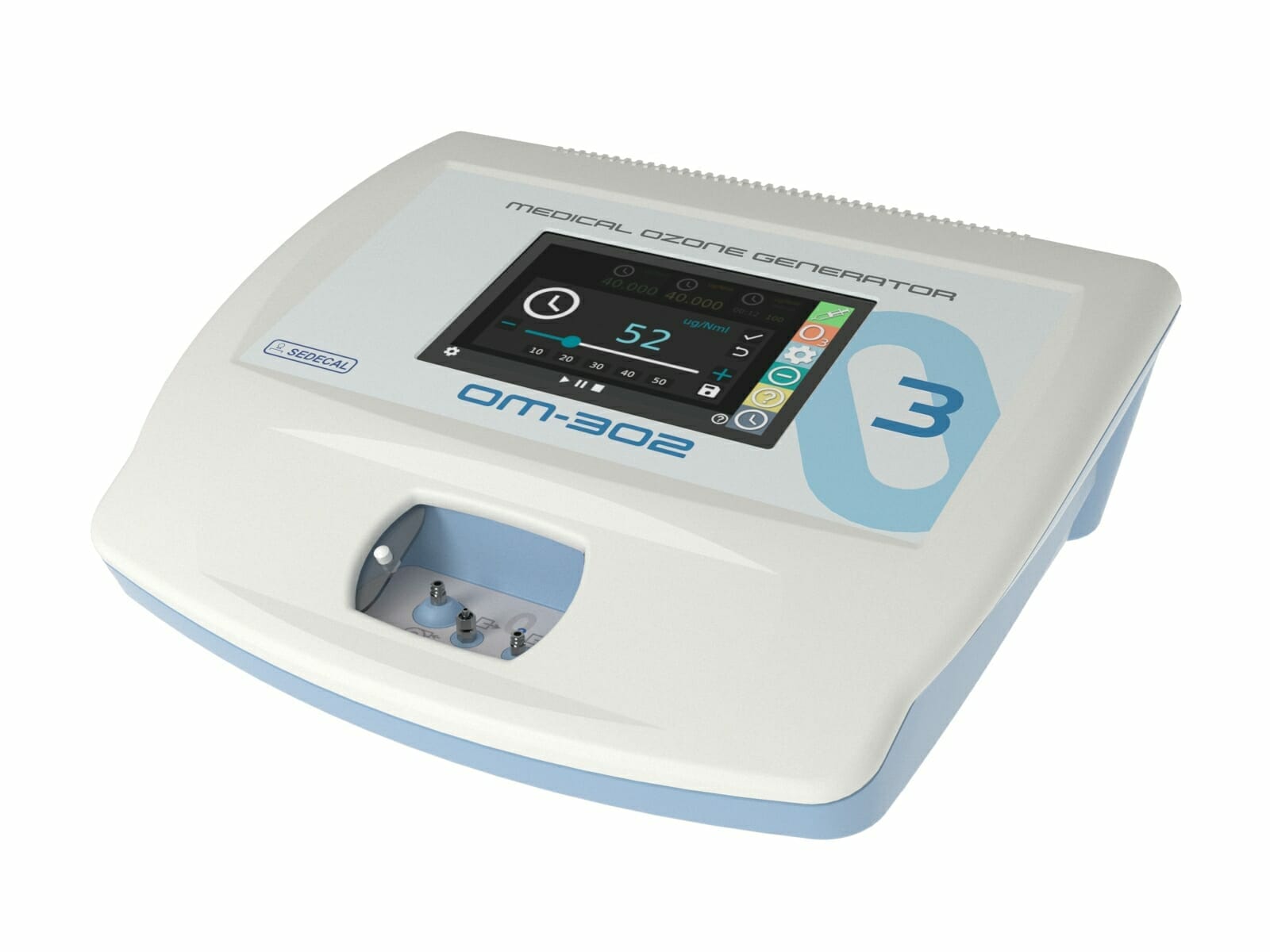

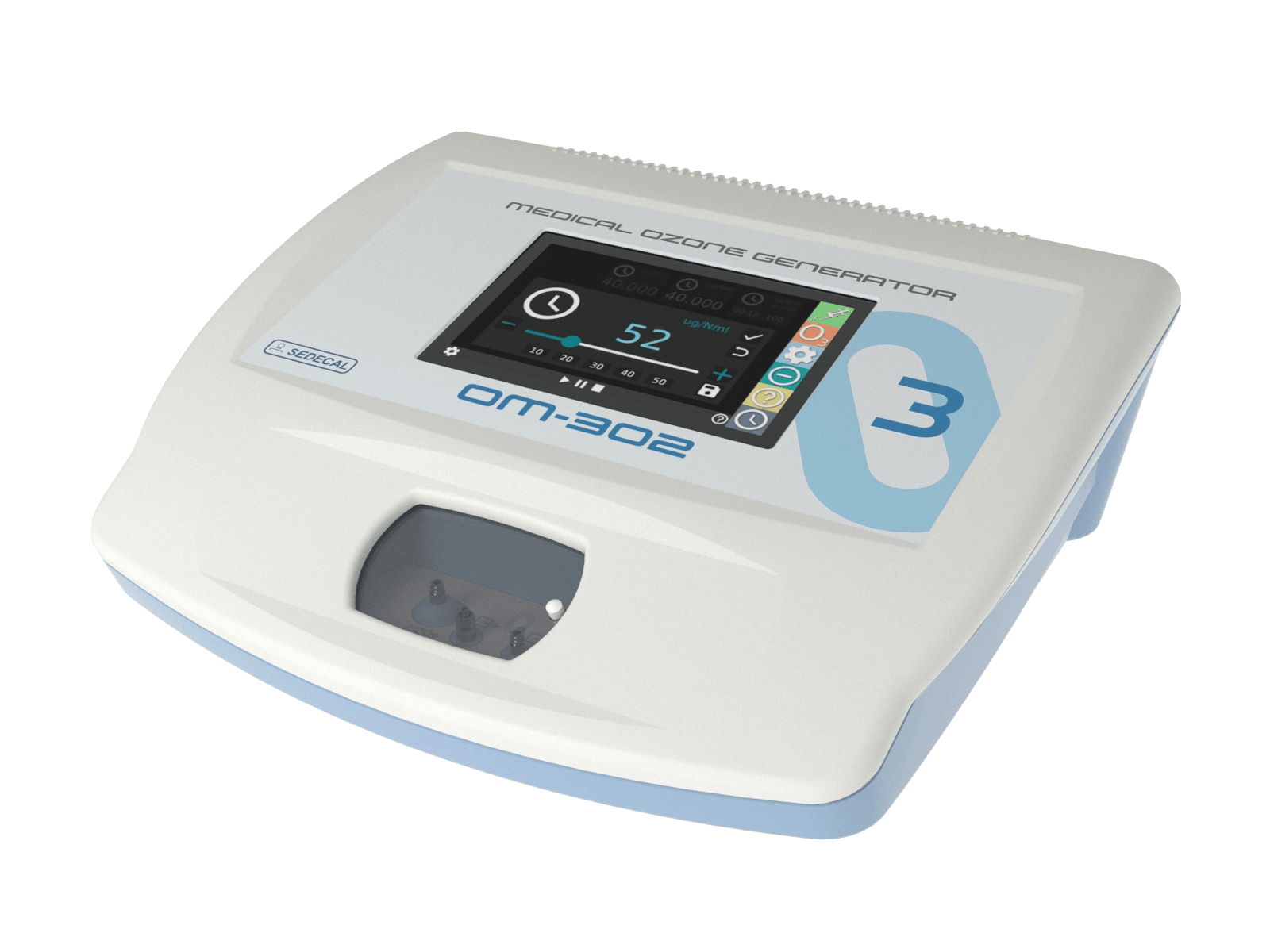

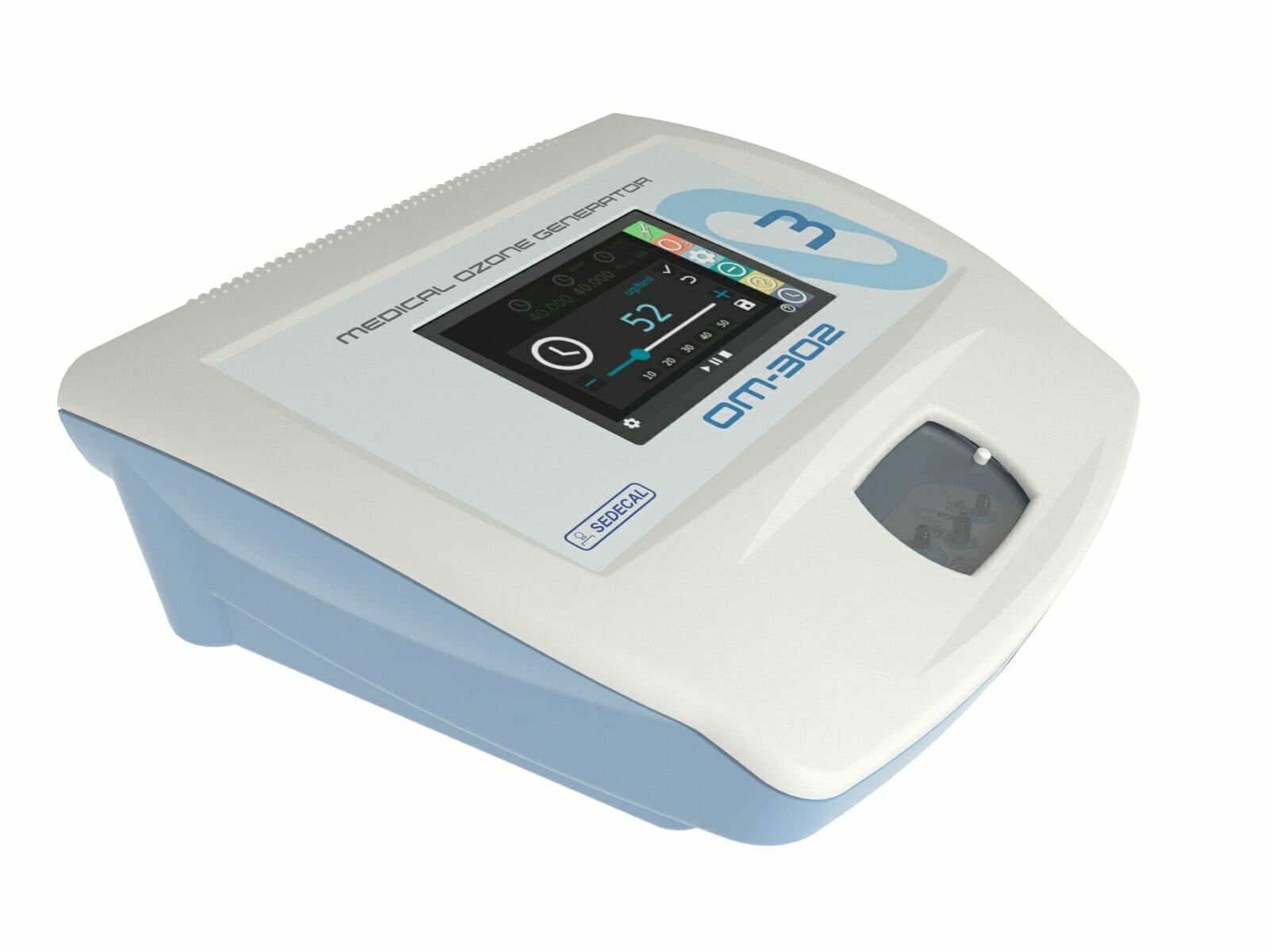

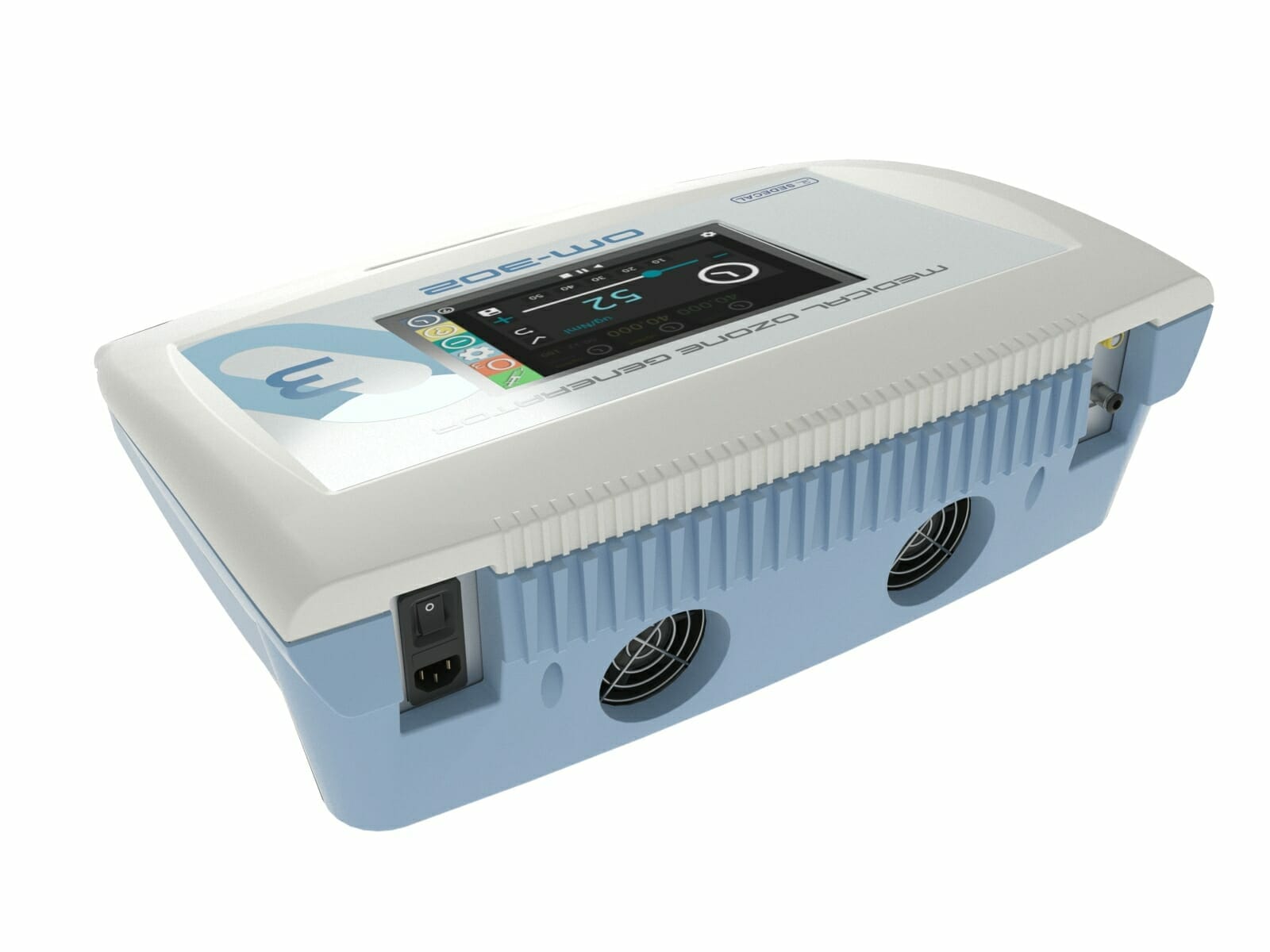

The OM 302 D is a Premium high quality built Medical Certified Ozone Generator.

Intended for Ozone Therapy Power User, the OM 302 D can be used for hyperbaric, normobaric and multipass applications.

The OM 302 D user interface is intuitive, easy to use, that enables to program tailored protocols. It's design makes it simple to set up within a few minutes.

It's innovating advanced technology enables the OM 302 D to operate within a wide range of enivorments. An inbuilt Dynamic Flow Control, Dual Measurement System, Pressure and Temperture Normalisation with an Over Pressure Cut sensors. It produces accurate and precise medical grade ozone gas concentrations, from 1 to 80ug in 1ug increments.

This unit is ideal for Prolozone Therapy, all Insufflation Methods, Multipass IV Applications, IV Ozone Saline Infusions, Minor and Major Autohemotherapy and Ozone Injectables.

Operating Modes:
12 Operating Modes Including:
Syringe automatic loading
Continuous mode with independent flow adjustment
Manual mode (complete user control)
Programable Mode for Tailored Protocols

Concentration Range:
1 to 80ug/Nml in steps of 1ug/Nml.

Ozone Output:
Total Ozone Concentration Output 3g/h

Ozone Flow Rate:
Digitally adjustable from 10 to 50 L/h (0.167LPM to 0.83LPM)

N Standardization Measurement:
Monitors the environmental pressure and temperature

Ozone Generator Tube:
High Voltage Generator™ with a compact ozone tube, governed by an electronic controller, producing very precise and consistent ozone gas concentrations

Dynamic Control Monitoring (DCM):
Increases ozone concentration stability providing greater accuracy and precision

Uniform Flow Distribution:
Monitors the live flow of gas through the ozone generator tube and controls the flow while simultaneously ensuring the ozone – oxygen gas mixture is homogeneous

Optimized Oxygen Consumption:
The Ozonette system automatically determines the precise syringe volume, thereby reducing medical oxygen and ozone gas wastage

Algorithm Concentration Measurement (ACM):
Live concentration measurement system

Automatic Overpressure Detection (AOD):
Increased pressure detected within the Ozonette system

Double Ozone Destructor System:
Two internal ozone catalytic destructor units each with an independent circuit completely maintenance-free

User Interface:
Graphic LCD Screen
Operational via Digital Touch Screen TFT Display
Simple and Intuitive Interface

Specifications:
Weight: 3kg
Dimensions in cm: 25 x 27 x 12
Certificates: EC, RoSH, MDD (llb class)

Medical Gas Supply:
Compatibility with medical oxygen cylinder and centralized oxygen supply system

Power Supply:
Universal external power supply medical standards (100 to 240V/50 to 60Hz )

For more information download the brochures below.
