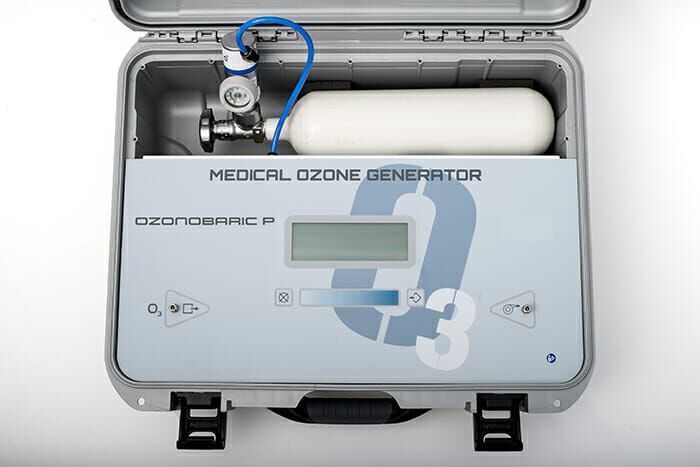

Ozonobaric P - Ozone Generator

The Ozonobaric P Unit is a high quality built Medical Certified Ozone Generator.

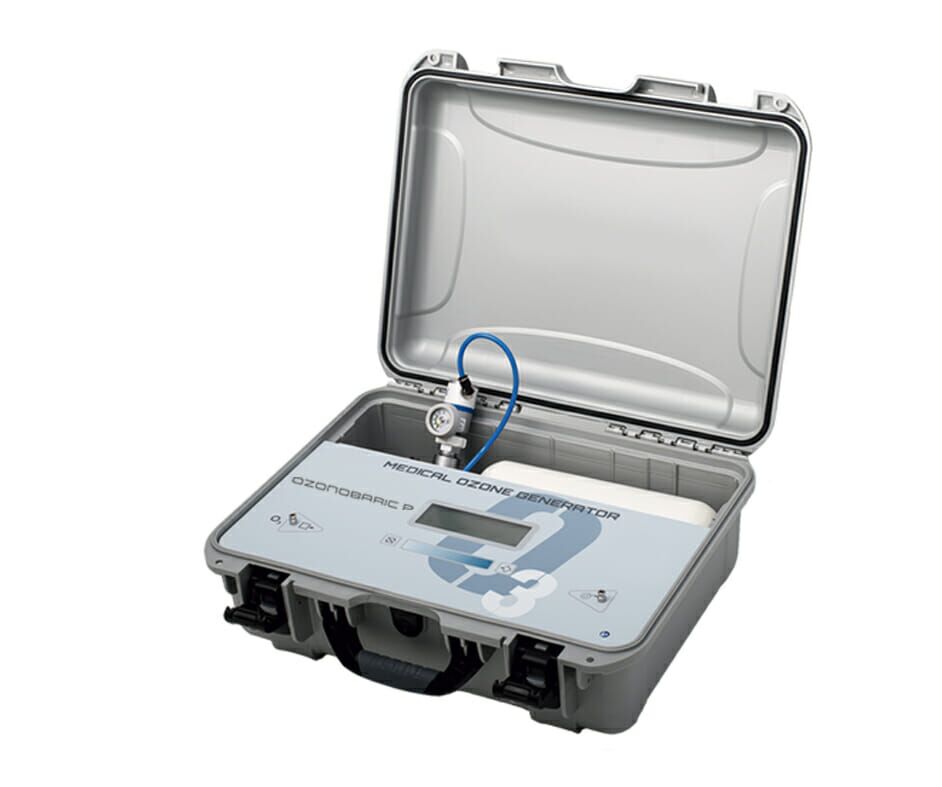

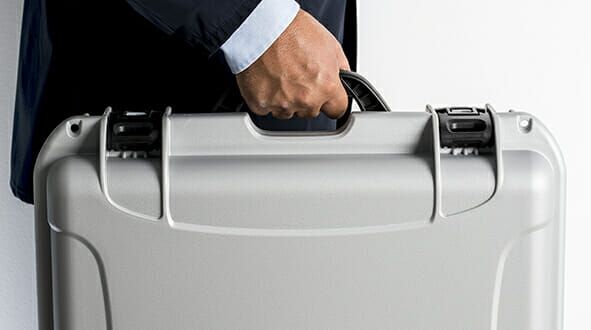

It is a portable system, that is integrated into an IP67 waterproof and NK-7 rated impact-resistant case. The case comes with an automatic adjusting pressure valve and secure power-claw clamps.

The Ozonobaric P is set up to be on the go or in the clinic, providing a simple user interface design and easy set-up makes this system a popular ozone generator for all clinical applications. Additionally, it is fully equipped with a vacuum pump.

Its advanced technology enables the Ozonobaric P to operate within a wide range of enivorments. Its dual ozone gas measurement system produces very accurate and precise medical grade ozone gas concentrations.

This unit is ideal for Prolozone Therapy, all Insufflation Methods, IV Ozone Saline Infusions, Minor Autohemotherapy, Major Autohemotherapy, Hyperbaric Major Autohemotherapy and Aesthetic Ozone Injections.

The Ozonobaric P Package Includes:
Hersil Oxygen Regulator
Medical Oxygen Coil Tubing
UK Mains Electrical Cable
5 Luer Protection Filters
USB or Booklet Ozonette Operation Manual & Video Tutorial

Medical Ozone Resistant Accessories Available.

£5500.00 Incl.VAT & Free UK Shipping



Operating Modes:
Syringe automatic loading
Continuous mode with independent flow adjustment
Dose mode (use in MAHT & IV Saline Infusions)
Bagging (limb bagging or cupping)
Vacuum (extract air from limb bag or dual kit MAHT or Saline)

Concentration Range:
1 to 80ug/Nml in steps of 1ug/Nml.
Dual, Photometric and Indirect (ACM) Concentration Measurement. Mainttaince Free.

Ozone Output:
Total Ozone Concentration Output 3g/h

Oxygen Inlet Quick Value:
Inlet pressure from 1.5 - 3.5 bar

Ozone Flow Rate:
An adjustable flow rate in Manual or Dynamic modes from 20 to 50 L/h (0.33LPM to 0.83LPM)

Intergrated Vacuum Pump:
Vacuum up to -0.68bar (8.7PSI)

Independant Ozone & Vacuum Inlets:
Standard Lüer Lock System

N Standardization Measurement:
Monitors the environmental pressure and temperature

Ozone Generator Tube:
High Voltage Generator™ with a compact ozone tube, governed by an electronic controller, producing very precise and consistent ozone gas concentrations

Dynamic Control Monitoring (DCM):
Increases ozone concentration stability providing greater accuracy and precision

Uniform Flow Distribution:
Monitors the live flow of gas through the ozone generator tube and controls the flow while simultaneously ensuring the ozone – oxygen gas mixture is homogeneous

Optimized Oxygen Consumption:
The Ozonette system automatically determines the precise syringe volume, thereby reducing medical oxygen and ozone gas wastage

Algorithm Concentration Measurement (ACM):
Live concentration measurement system

Automatic Overpressure Detection (AOD):
Increased pressure detected within the Ozonette system

Double Ozone Destructor System:
Two internal ozone catalytic destructor units each with an independent circuit completely maintenance-free

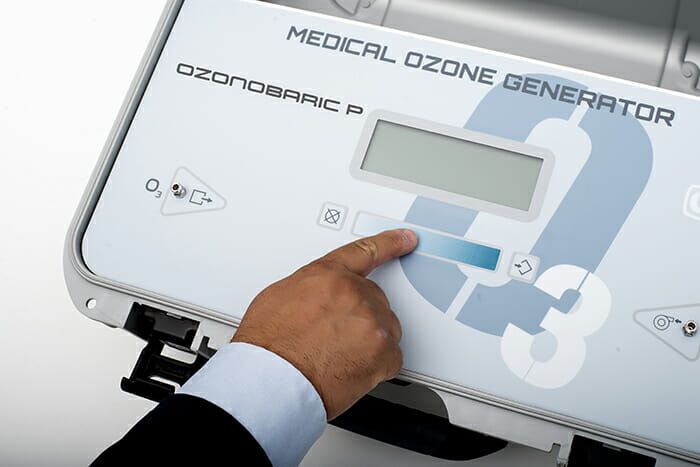

User Interface:
Graphic LCD Screen
Operational via Digital Touch Control
Simple and Intuitive text-free interface

Specifications:
Weight: 9kg (without oxygen bottle)
Dimensions in cm: 51 x 41 x 20
Certificates: CE0120 Class llb. UL. CSA Certificates

Medical Gas Supply:
Compatibility with medical oxygen cylinder and centralized oxygen supply system

Power Supply:
Universal external power supply medical standards (100 to 230V/ 50 to 60Hz / 145VA )

For more information download the brochures below.

Order Your Ozonette Generator Now
Payment Plan Options Available
